特  点Features:
　　
　　1、磁极结构为扁平状，适合搬运各种外径、长度、捆数的捆扎钢管。
　　
　　2、磁极面无突起，不会损害钢管表面。
　　
　　3、操作灵活，一次可吊一捆至数捆。
　　1.The shape of magnetic pole is flat.It is suitable for transporting bunched steel pipes with various kinds of outside diameter,length and quantity.
　　
　　2.The surface of magnetic pole is even,so the surface of steel pipe will not be damaged.
　　
　　3.Flexible operation.It can lift one to several bunches at a time.
　　

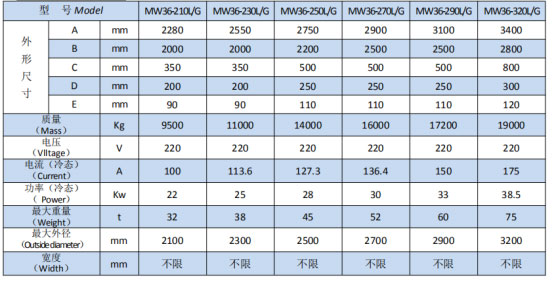

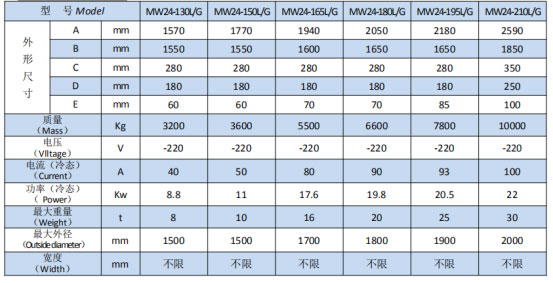

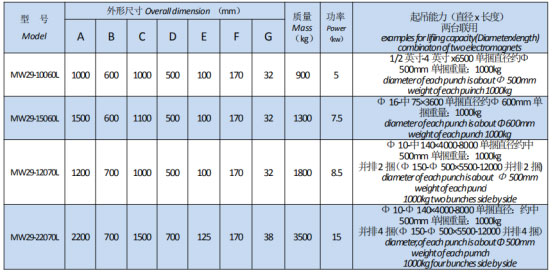

　　主要技术参数Main technical data                        DC-220V,TD-60%
　　主要技术参数Main technical data   吊运方式：立式吊运 Vertically lift  TD-50%
　　主要技术参数Main technical data   吊运方式：立式吊运 Vertically lift  TD-50%
